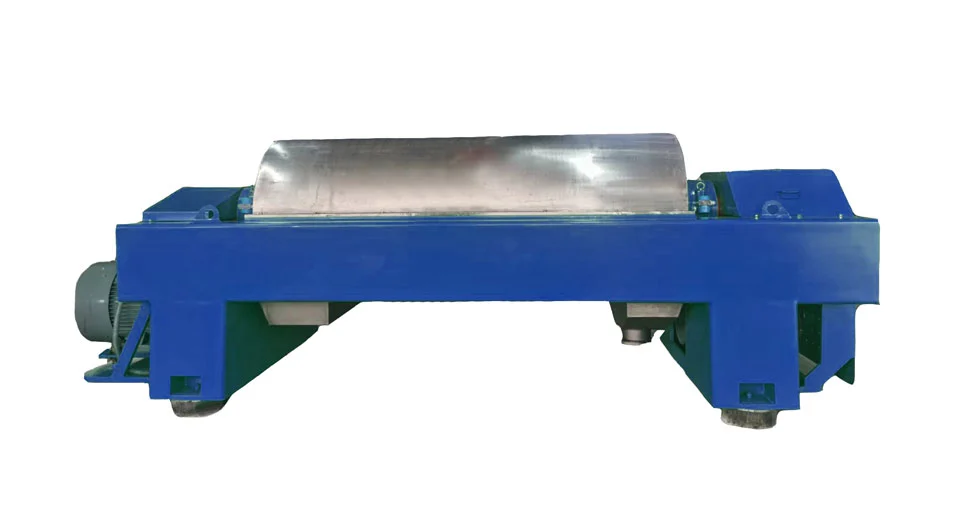

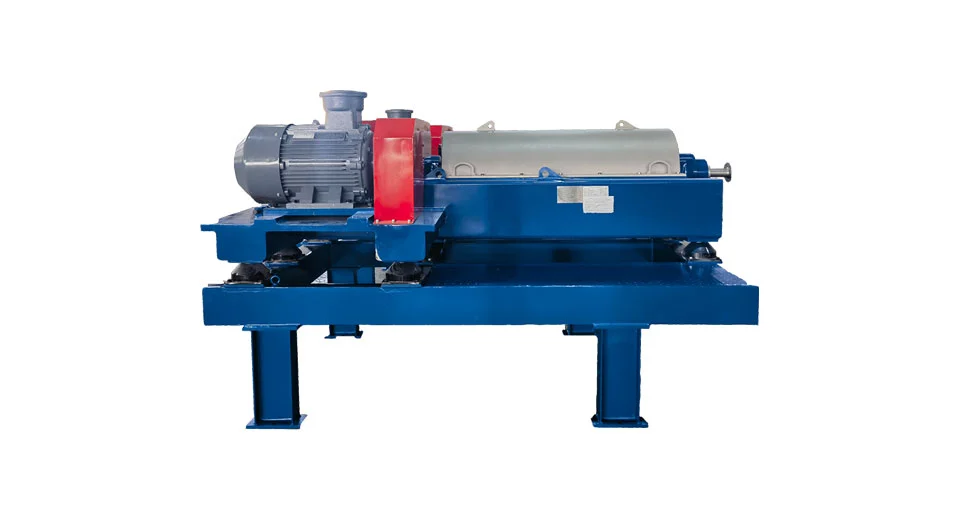

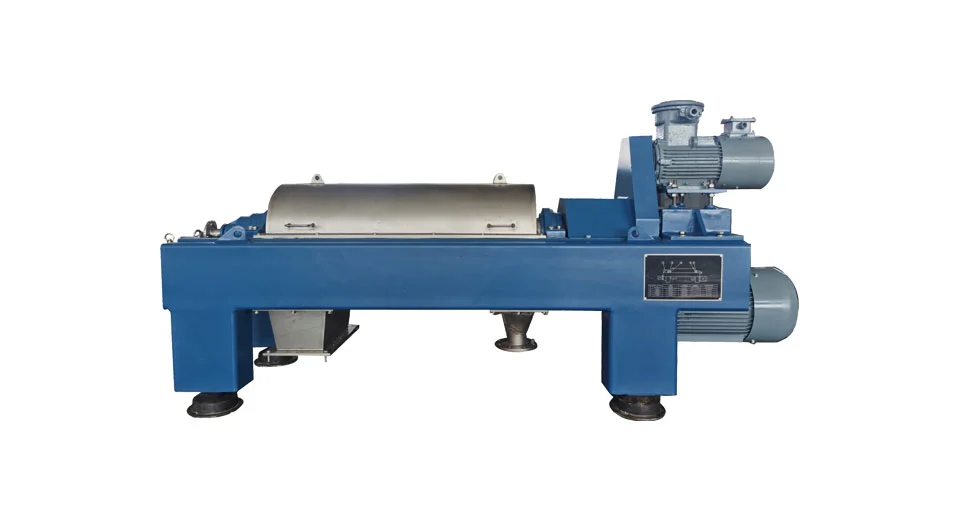

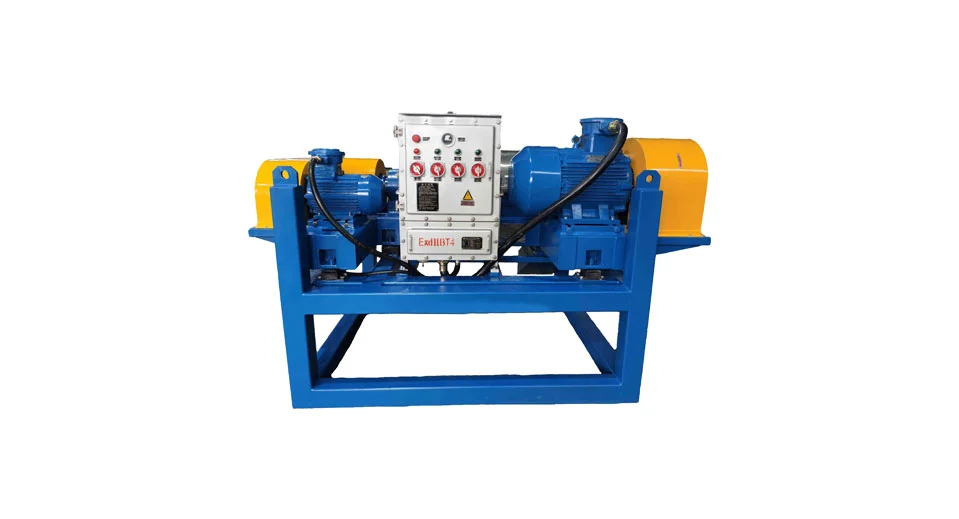

Decanter centrifuge is the 4th class solids control equipment in whole drilling mud system; It isused to process drilling mud discharged from desilter cones or mud cleaner.
Bowl Cylindrical and the Conical section made of Duplex Stainless Steel 2205 by centrifugal casting. Other parts of the bowl assembly are made of stainless steel 316L.
Screw protection: Tungsten Carbide Tiles for longer life and easier replacement.
Screw flow distribution port and bowl solids discharge port protected by tungsten carbide alloy.
Easy to adjust liquid discharge weir height for flexible application.
Bowl assembly supported by the tighter belt for the protection of bearing in moving.
Pressurized EX Proof VFD control cabinet available.
Genuine SKF bearing for longer and reliable operation.
| Model | BZLW250-1075 | BZLW355-1250 | BZLW450-1000 | BZLW530-2279 | BZLW650-2795 |
| Tumbler Diameter | 250mm | 355mm | 450mm | 530mm | 650mm |
| Tumbler Length | 1075mm | 1250mm | 1000mm | 2279mm | 2795mm |
| Max Capacity | ≤5m³/h | ≤40m³/h | ≤60m³/h | ≤70m³/h | 80m³/h |
| Max Rotation Speed | 3800RPM | 3200RPM | 2200RPM | 3500RPM | 3200RPM |
| Separation Coeffivetent | 2835 | 2435 | 1215 | 3635 | 3720 |
| Particle Size | 2～5μm | 5~7μm | 2～5μm | ||
| Main Motor Power | 7.5kW | 37kW | 37kW | 55kW | 90kW |
| Helper Motor Power | 3kW | 11kW | 7.5kW | 15kW | 22kW |
| EX Standard | ExdllBt4/IECEX/A-TEX | ||||
| Weight | 1000kg | 2750kg | 2800kg | 5700kg | 8000kg |
| L*W*H | 2200x1010x720mm | 2960x1550×1730mm | 2750×1550×1750mm | 4875X1260×1465mm | 5595x1350×1548mm |
| Remark | Max capacity is for clean water, Fixed speed and frequency conversion centrifuges are available | ||||
