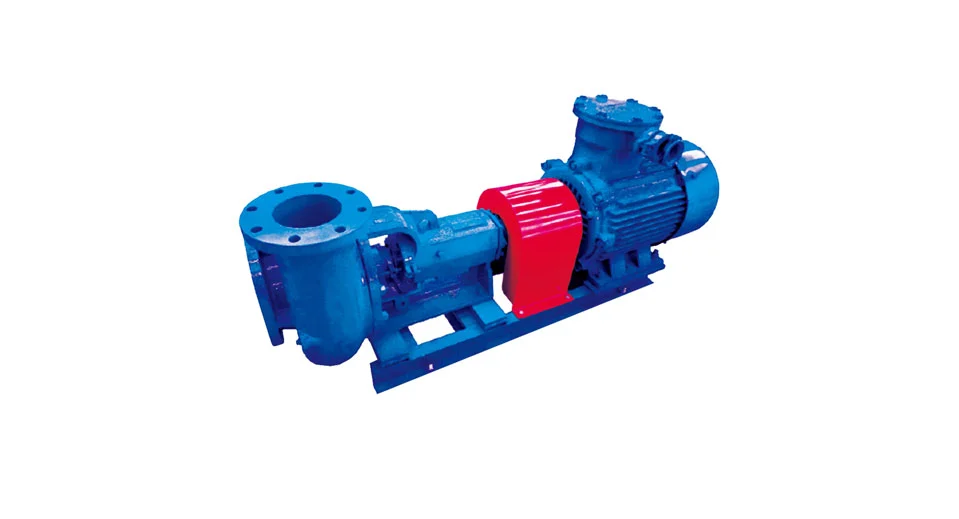

BZSB series centrifugal pumps are mainly used for solid control circulation system of oil and gas drilling, providing mud supply with appropriate delivery capacity and lift for desander, desilter, mud cleaner, mud mixing device, mud pump supplement, etc.. Sizes range from 3 x 2 to 8 x 6, and customers can choose different models according to their needs. BZ centrifugal pumps are all designed with mechanical seals, famous brand bearings and semi-open impeller.
Tungsten carbide mechanical seal
SKF or FAG brand bearings.
Double row grease lubrication
Different casting materials are available
| Model | Capacity | Lift | Motor Power | Rotation Speed | Impeller Diameter |
| BZSB8X6-14 | 320 m³/h (1173 gpm) | 40m | 75kW | 1450RPM (50Hz) | 14in |
| BZSB8X6-12 | 350 m³/h (1283 gpm) | 42m | 1750RPM (60Hz) | 12in | |
| BZSB8X6-13 | 280 m³/h (1027 gpm) | 35m | 55kW | 1450RPM (50Hz) | 13in |
| BZSB6X5-12 | 200 m³/h (733 gpm) | 45m | 1750RPM (60Hz) | 12in | |
| BZSB6X5-13 | 180 m³/h (660 gpm) | 35m | 45kW | 1450RPM (50Hz) | 13in |
| BZSB5X4-14 | 150 m³/h (550 gpm) | 60m | 1750RPM (60Hz) | 14in | |
| BZSB6X5-12 | 160 m³/h (587 gpm) | 30m | 37kW | 1450RPM (50Hz) | 12in |
| BZSB5X4-12 | 110 m³/h (403 gpm) | 45m | 1750RPM (60Hz) | 12in | |
| BZSB6X5-11 | 200 m³/h (733 gpm) | 21m | 30kW | 1450RPM (50Hz) | 11in |
| BZSB5X4-11 | 110 m³/h (403 gpm) | 35m | 1750RPM (60Hz) | 11in | |
| BZSB5X4-12 | 90 m³/h (330 gpm) | 30m | 22kW | 1450RPM (50Hz) | 12in |
| BZSB5X4-10 | 100 m³/h (367 gpm) | 30m | 1750RPM (60Hz) | 10in | |
| BZSB5X4-11 | 90 m³/h (330 gpm) | 24m | 18.5kW | 1450RPM (50Hz) | 11in |
| BZSB4X3-12 | 55 m³/h (202 gpm) | 45m | 1750RPM (60Hz) | 12in | |
| BZSB4X3-13 | 50 m³/h (183 gpm) | 40m | 15kW | 1450RPM (50Hz) | 13in |
| BZSB4X3-11 | 55 m³/h (202 gpm) | 35m | 1750RPM (60Hz) | 11in | |
| BZSB4X3-12 | 45 m³/h (165 gpm) | 30m | 11kW | 1450RPM (50Hz) | 12in |
| BZSB3X2-12 | 28 m³/h (103 gpm) | 45m | 1750RPM (60Hz) | 12in | |
| BZSB3X2-12 | 45 m³/h (165 gpm) | 24m | 7.5kW | 1450RPM (50Hz) | 12in |
| BZSB3X2-11 | 25 m³/h (92 gpm) | 35m | 1750RPM (60Hz) | 11in | |
| BZSB3X2-11 | 20 m³/h (73 gpm) | 23m | 5.5kW | 1450RPM (50Hz) | 11in |
